Making the Arduino Talk to the Raspberry Pi

Project Type: Raspberry Pi and Arduino
Software: Arduino IDE, Python3 IDLE
OS: Raspbian/Noobs
Kits/Part Source: Raspberry Pi and Arduino
Project Source: Getting Started with Raspberry Pi Book by Matt Richardson and Shawn Wallace

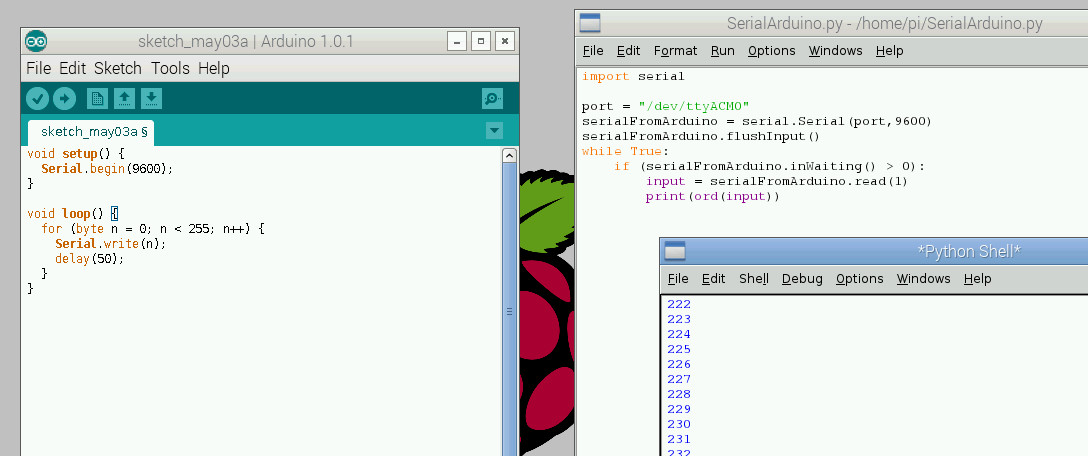

This week I got the Arduino to talk to the Raspberry Pi. The project is pretty basic. The Arduino counts from 0 to 255 in a loop

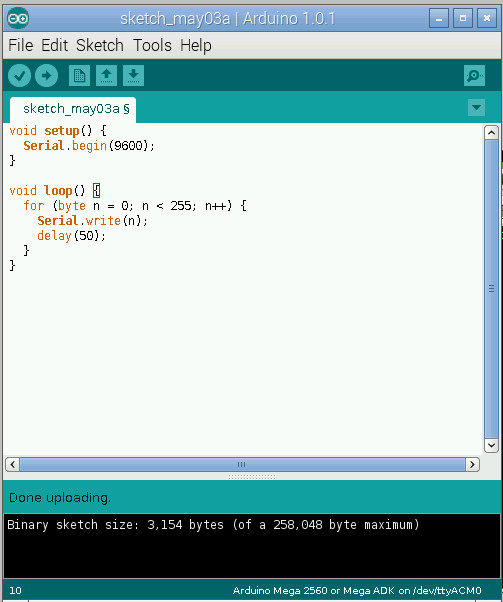

Sketch counts to 255 in a loop

Sketch counts to 255 in a loop

Then is sends data to the Raspberry Pi via the serial port. The data is displayed in a python shell

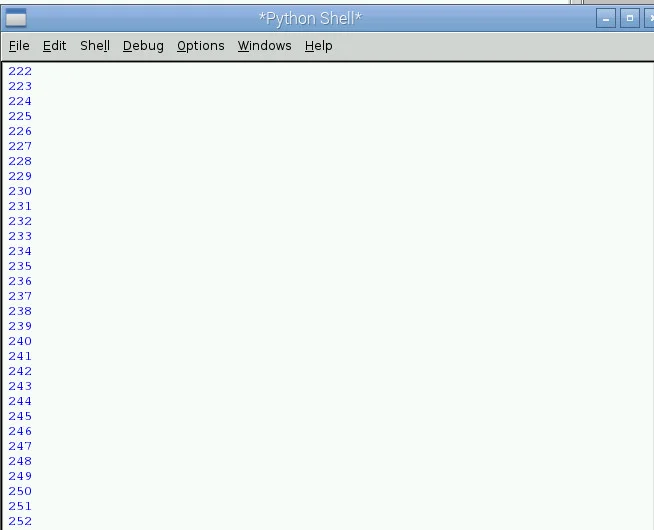

Data displayed in a python shell

Data displayed in a python shell

1-10 Ratings

IKEA Rating - 10
Super simple instructions. Worked exactly like it said it was going to.

Tony Stark Rating - 4
Yes the project was simple but I needed to know how to use command line in terminal in order to make sure I had the python serial library.

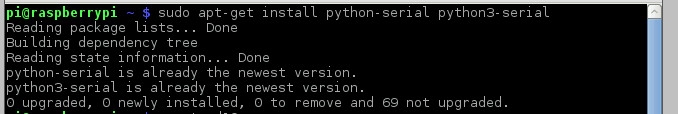

apt-get to get the python serial library

apt-get to get the python serial library

I also had to be familiar with both the Arduino IDE and the Python3 IDLE to complete the project.

Arduino and Python

Arduino and Python

Mr. Wizard Rating - 10
I learned how to utilize the Arduino with Python in a Linux environment.

Source: http://www.makershed.com/products/make-get...
